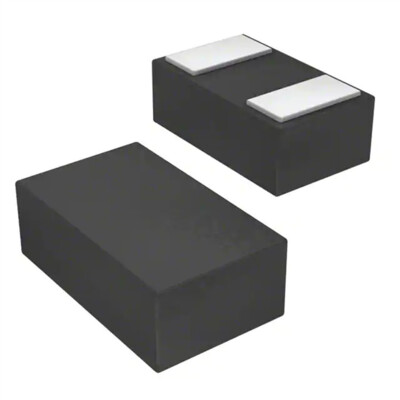

TPD1E05U06QDPYRQ1 40 X1SON-2 ESD Suppressor Diode SMD
产品详情
| installation type | Surface Mount Type |
| Voltage - Reverse Off-State (Typical) | 5.5V (max) |
| Current-Peak Pulse (10/1000µs) | 2.5A (8/20?s) |
| Power Line Protection | Yes |
| Power - Peak Pulse | 30W |
| Voltage - Breakdown (Min) | 6.4V |
| Capacitance at different frequencies | 0.42pF @ 1MHz |
| Voltage-clamp (max) at different Ipp | 14V (standard) |
| Package/Enclosure | 0402 (1006 Metric) |
| Operating temperature | -40°C ~ 125°C (TA) |
| Supplier Device Packaging | 2-X1SON (1x.60) |
| one-way channel | 1 |
| type | Steering device (rail to rail) |
| application | Automotive, HDMI, USB |
