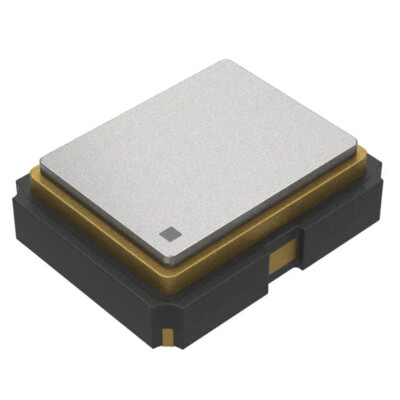

HX21A0007Z SMD Crystal Oscillator 100 MHz LVCMOS XO 3.3V Enable / Disable 4-SMD No Leads
产品详情
HX21A0007Z Oscillator 100 MHz LVCMOS XO 3.3V Enable/Disable 4-SMD, No Leads
| TYPE | DESCRIBE |
|---|---|
| category | Crystals, Oscillators, Resonators oscillator |
| manufacturer | Diodes Incorporated |
| series | HX |
| product status | in stock |
| basic resonator | crystal |
| type | XO (standard) |
| frequency | 100 MHz |
| Features | enable/disable |
| output | LVCMOS |
| Voltage - Powered | 3.3V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | - |
| Operating temperature | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (max) | 40mA |
| grade | - |
| installation type | Surface Mount Type |
| Package/Enclosure | 4-SMD, no leads |
| size/dimension | 0.098"L x 0.079"W (2.50mm x 2.00mm) |
| Height - Mounted (Maximum) | 0.039"(1.00mm) |
| Current - Powered (Disabled) (Maximum) | 100µA |
