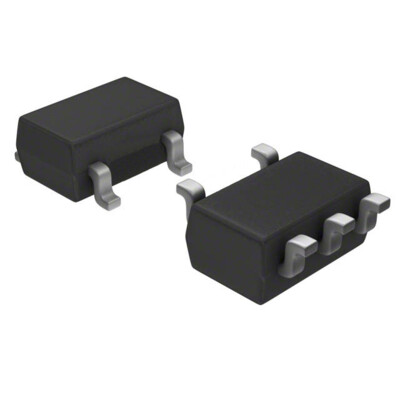

SN74AHC1GU04DBVR IC INVERTER 1CH 1-INP New And Original IC Chip
产品详情
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542330001 |
| Automotive | No |
| PPAP | No |
| Logic Family | AHC |
| Logic Function | Inverter |
| Number of Elements per Chip | 1 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 10.6@3.3V|7@5V |
| Absolute Propagation Delay Time (ns) | 13 |
| Process Technology | CMOS |
| Output Type | Push-Pull |
| Maximum Low Level Output Current (mA) | 8 |
| Maximum High Level Output Current (mA) | -8 |
| Minimum High Level Output Voltage (V) | 1.8 |
| Maximum Low Level Output Voltage (V) | 0.5 |
| Minimum Operating Supply Voltage (V) | 2 |
| Typical Operating Supply Voltage (V) | 2.5|3.3|5 |
