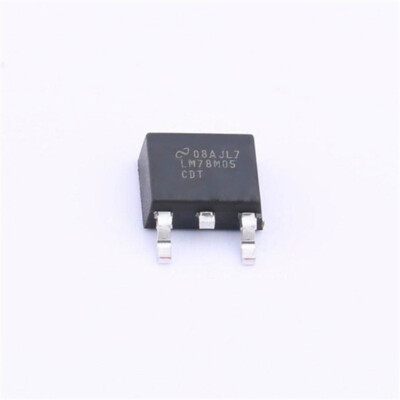

LM78M05CDTX/NOPB TO-252 Patch Linear Regulator Chip LM78M05
产品详情
| TYPE | DESCRIPTION |
|---|---|
| category | INTEGRATED CIRCUITS (ICS) interfaces - analog switches, multiplexers, demultiplexers |
| manufacturer | Texas Instruments |
| series | - |
| part status | sale |
| switching circuits | SPDT |
| multiplexer/demultiplexer circuit | 2:1 |
| number of circuits | 1 |
| on-resistance (max.) | 10 ohms |
| Channel-to-channel matching (Δ Ron) | 150 mω |
| VOLTAGE - POWER SUPPLY, SINGLE (V+) | 1.65V ~ 5.5V |
| VOLTAGE - POWER SUPPLY, DUAL (V±) | - |
| Switching time (Ton, Toff) (max.) | 8.5ns,6.5ns |
| -3db bandwidth | 300MHz |
| charge injection | 7pC |
| Channel capacitance (CS(off),CD(off)) | 5.5pF |
| Current - Leakage (IS(off)))(Max) | 100nA |
| crosstalk | -66dB @ 10MHz |
| operating temperature | -40°C ~ 85°C(TA) |
| the installation type | surface mount type |
| encapsulation/housing | SOT-23-6 |
| supplier device package | SOT-23-6 |
| basic product number | TS5A3157 |
