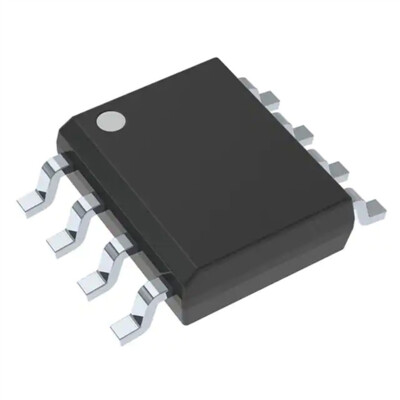

LM358BIDR LM358B patch SOP-8 operational amplifier chip new and original
产品详情
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.33.00.01 |
| Automotive | No |
| PPAP | No |
| Type | General Purpose Amplifier |
| Manufacturer Type | General Purpose Amplifier |
| Number of Channels per Chip | 2 |
| Maximum Input Offset Voltage (mV) | 3@36V |
| Minimum Single Supply Voltage (V) | 3 |
| Typical Single Supply Voltage (V) | 28|24|18|15|12|9|5 |
| Maximum Single Supply Voltage (V) | 36 |
| Minimum Dual Supply Voltage (V) | ±1.5 |
| Typical Dual Supply Voltage (V) | ±15|±12|±9|±5|±3 |
| Maximum Dual Supply Voltage (V) | ±18 |
| Maximum Input Offset Current (uA) | 0.004@36V |
| Typical Input Bias Current (uA) | 0.01@36V |
| Maximum Input Bias Current (uA) | 0.035@36V |
| Maximum Quiescent Current (mA) | 0.92@5V@-40C to 85C |
| Typical Output Current (mA) | 30@15V |
| Power Supply Type | Dual|Single |
| Typical Slew Rate (V/us) | 0.5@36V |
| Typical Input Noise Voltage Density (nV/rtHz) | 40@36V |
| Typical Voltage Gain (dB) | 102.92 |
| Minimum PSRR (dB) | 113.98(Typ) |
| Minimum CMRR (dB) | 93.98(Typ) |
| Minimum CMRR Range (dB) | 90 to 95 |
| Typical Gain Bandwidth Product (MHz) | 1.2 |
| Typical Settling Time (ns) | 4000 |
| Shut Down Support | No |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Packaging | Tape and Reel |
| Supplier Package | SOIC |
| Pin Count | 8 |
| Standard Package Name | SOP |
| Mounting | Surface Mount |
| Package Height | 1.5(Max) |
| Package Length | 5(Max) |
| Package Width | 3.98(Max) |
| PCB changed | 8 |
| Lead Shape | Gull-wing |
