0.22 µF 200V 400V Radial Metallised Polyester Film Capacitors 105MWR250K
产品详情

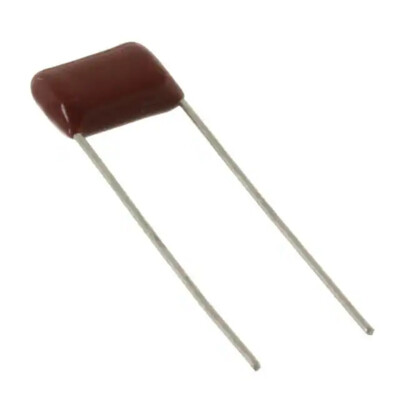

105MWR250K 0.22 µF Film Capacitor 200V 400V Polyester Metallized Radial
| TYPE | DESCRIBE |
|---|---|
| category | Film capacitors |
| manufacturer | Cornell Dubilier / Illinois Capacitor |
| series | MSR |
| product status | in stock |
| capacitance | 0.22µF |
| Tolerance | ±10% |
| Rated Voltage - AC | 200V |
| Rated Voltage - DC | 400V |
| Dielectric material | polyester, metallized |
| ESR (Equivalent Series Resistance) | 8.038 Ohms |
| Operating temperature | -55°C ~ 125°C |
| installation type | through hole |
| Package/Enclosure | radial |
| size/dimension | 0.886"L x 0.315"W (22.50mm x 8.00mm) |
| Height - Mounted (Maximum) | 0.571" (14.50mm) |
| termination | PC pins |
| lead spacing | 0.787" (20.00mm) |
| application | Universal |
| grade | - |
| characteristic | - |
