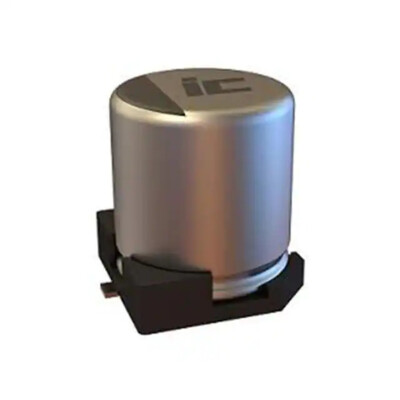

0 µF 35V SMD Aluminum Electrolytic Capacitor Radial Can 19.89 milliohms 120Hz 106AXZ035M
产品详情
106AXZ035M 0 µF 35 V Aluminum Electrolytic Capacitor Radial Can - SMD 19.89 milliohms 120Hz 2000 hours 105°C
| TYPE | DESCRIBE |
|---|---|
| category | capacitor Aluminum electrolytic capacitors |
| manufacturer | Cornell Dubilier / Illinois Capacitor |
| series | AXZ |
| product status | in stock |
| capacitance | 10µF |
| Tolerance | ±20% |
| Voltage - Rated | 35V |
| ESR (Equivalent Series Resistance) | 19.89 milliohms @ 120Hz |
| Service life at different temperatures | 2000 hours at 105°C |
| Operating temperature | -55°C ~ 105°C |
| polarization | polarization |
| grade | - |
| application | Universal |
| Ripple current at different low frequencies | 75mA @ 120Hz |
| Ripple current at different high frequencies | 150 mA @ 100 kHz |
| impedance | 760 mOhms |
| lead spacing | - |
| size/dimension | 0.197" diameter (5.00mm) |
| Height - Mounted (Maximum) | 0.217" (5.50mm) |
| Surface Mount Pad Dimensions | 0.209"L x 0.209"W (5.30mm x 5.30mm) |
| installation type | Surface Mount Type |
| Package/Enclosure | Radial, Can-SMD |
