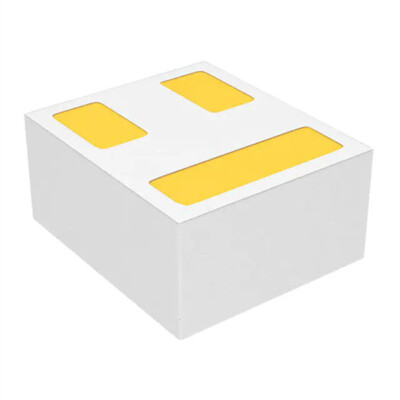

CSD13380F3 MOS Field Effect Tube PICOSTAR3 Silk Screen D Original Spot Mosfet
| TYPE | DESCRIBE |
|---|---|
| category | Discrete ductor Products Transistor - FET, MOSFET - Single |
| manufacturer | Texas Instruments |
| series | FemtoFET™ |
| product status | in stock |
| FET type | N channel |
| technology | MOSFET (Metal Oxide) |
| Drain-Source Voltage (Vdss) | 12V |
| Current at 25°C - Continuous Drain (Id) | 3.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| On-resistance (max) at different Id, Vgs | 76 milliohms @ 400mA, 4.5V |
| Vgs(th) (maximum) at different Ids | 1.3V @ 250µA |
| Gate charge (Qg) at different Vgs (max) | 1.2nC @ 4.5V |
| Vgs (max) | 8V |
| Input capacitance (Ciss) at different Vds (max) | 156 pF @ 6V |
| FET function | - |
| Power dissipation (max) | 500mW (Ta) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| installation type | Surface Mount Type |
| Supplier Device Packaging | 3-PICOSTAR |
| Package/Enclosure | 3-XFDFN |
| Basic product number | CSD13380 |
